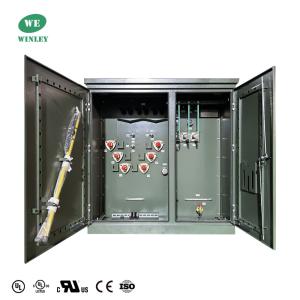

1500Kva Three Phase Pad Mounted Transformer Oil Immersed 4160V Meets DOE 2016 ANSI/IEEE Standards
Why choose us
- High-Quality Transformers: WINLEY offers a full range of three-phase pad-mounted transformers (45kVA-5500kVA, up to 34.5kV) that meet or exceed industry standards like DOE 2016, IEEE/ANSI, CSA, IEC, and NEMA.
- Certified and Customizable: Our transformers are UL/cUL certified (UL-US-2431836-0, UL-CA-2423202-0) and can be UL-authorized based on customer requirements.
- Experienced and Reliable: With extensive experience exporting to North & South America and the Philippines, we provide professional after-sales service and fast delivery within 7-35 days.
Main data
| Phase: | Three Phase |
| Transformer Type: | Pad Mounted |
| Capacity: | 1500 KVA |
| Vector Group: | YYN0 |
| Primary Voltage: | 4160GrdY/2400 |
| Secondary Voltage: | 480V Delta |
| Frequency: | 60 Hz |
| Temperature Rise: | 55°C |
| Cooling Class: | KNAN; Self-Cooled |
| Impedance (Typical): | 5.0-7.5% Typical |
| Efficiency Standard(s): | Meets DOE 2016 ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation): | K-0 (Standard) |
| Winding Material: | copper |
| Ambient Temperature Rating: | 40°C |
| Enclosure Rating: | NEMA 3R Weatherproof |
| Dimensions: | 85-W x 80-D x 73-H |
| Weight: | 10,200 lb |
STRUCTURE

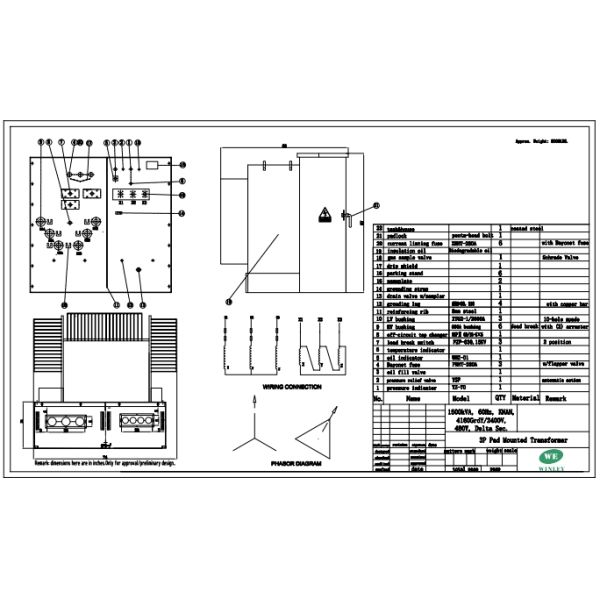

Drawing
Features
• Loadbreak high-voltage bushing inserts or externally clamped integral (one piece) high-voltage bushings for dead-front applications.
• Externally-clamped porcelain high-voltage bushings with eyebolt connectors for live-front applications.
• Low-voltage connectors, including various screw-on or slip-on types.
• Lightning arrester mounting provisions.
• Externally operable non-loadbreak high-voltage tap switch with one of the following tap ranges: four 2.5%taps above normal; or four 2.5% taps below normal; or two 2.5% taps above and two 2.5%taps below normal; or taps at13800/13200/12870/ 12540 for transformers with a nominal high-voltage rating of 14400 (may not be available in combination with dual high-voltage switch).
• Externally operable dual high-voltage switch (may not be available in combination with high-voltage tap switch).
• Externally operable two-position or four-position high-voltage loadbreak switch.
• Secondary termination:Externally clamped bushings with NEMA 4-hole, 6-hole, 8-hole, 10-hole or12-hole spades Spade supports are available. They are provided for 8-hole spades and larger.
• Draw-out full-range current limiting fuses in dry-well canisters; with or without interlocking loadbreak switch.
• Arc Strangle* fused disconnect.
• under-oil, elbow, or panel-mounted types (panel-mounted types are available on compartmental live-front units only).
• Drip shields for use with draw-out expulsion fuse.
• High capacity pressure relief device mounted on tank cover.
• Drain valve with sampling device.
• Total stainless steel or hybrid.(mild steel/stainless steel construction)
Specification
Rated Power
(KVA) | High Voltage
(KV) | Low Voltage
(V) | No-load Loss
(W) | On-load Loss
(W) | Height
(mm) | Depth
(mm) | Width
(mm) | Weight
(kg) | Weight
(Lbs) |
| 75KVA | 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others | 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347 | 180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 |
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 |
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 |
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 |
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 |
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 |
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 |
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 |
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 |
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Application
Their sealedhigh-voltage and low-voltage safely compartments ensure their safe operalion and reduce the risk of accidents, making themideally suited for use in residential applications, tourist sites, hotels and other buildings.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
